This post documents a compact pipeline to compute forward kinematics (FK) and inverse kinematics (IK) for the Dobot Magician Lite, and to execute accurate pick-and-place motions.

  • Robot: Dobot Magician Lite (3-DOF arm + end-effector)
  • Goal: Convert task-space waypoints into joint trajectories using IK, verify poses via FK, and run repeatable pick-and-place.

Demo: Pick and Place using Dobot Magician Lite

Below are short demonstrations of the pick-and-place routine running on the Dobot Magician Lite. They highlight the waypointing strategy and grasp/placing phases.

Kinematic Model

  • Frames: Base (B), Shoulder (S), Elbow (E), Wrist (W), Tool (T)
  • DH parameters: Denavit–Hartenberg convention to define link transforms.
Ti_{i-1}^{i} = Rot(z, θ_i) · Trans(z, d_i) · Trans(x, a_i) · Rot(x, α_i)

You can either obtain the official DH parameters from the vendor documentation or measure the effective link lengths and offsets. For small desktop arms, a good practice is to calibrate link lengths by probing a few known poses.

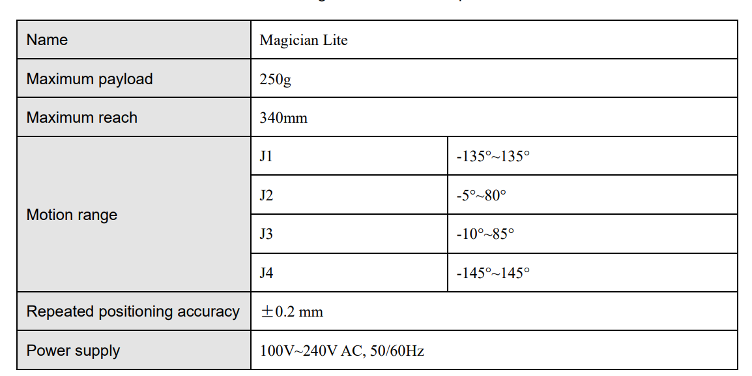

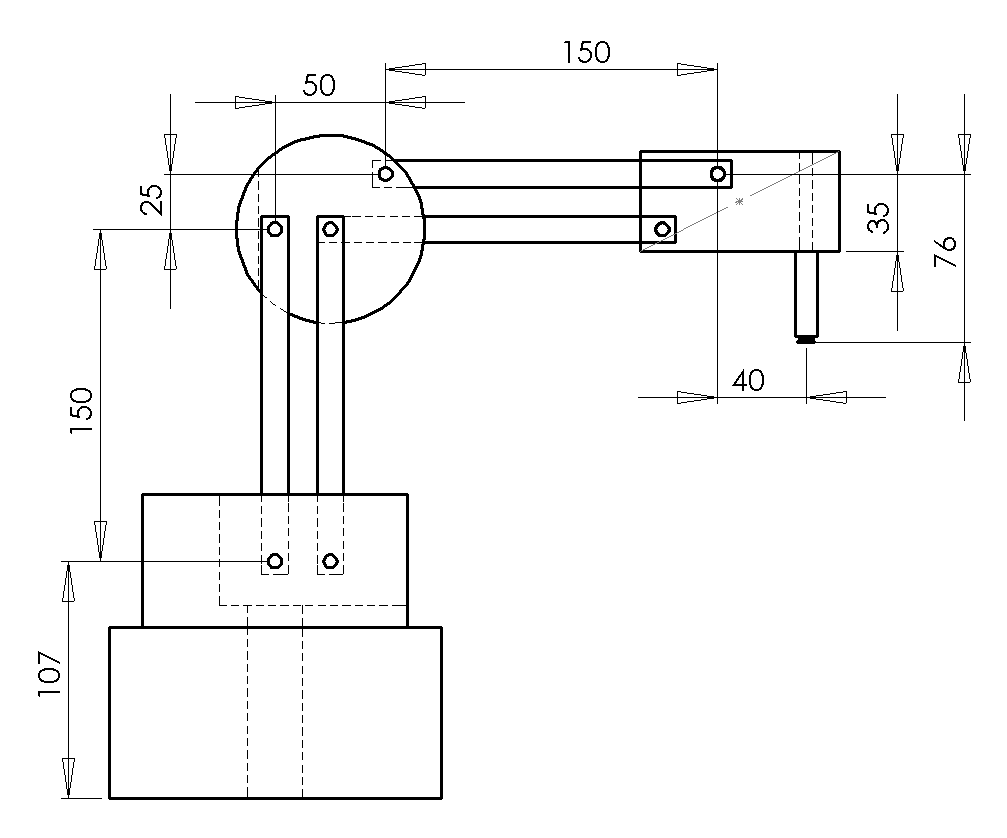

Dobot Magician Lites link length are 150mm each and has a X axis offset of 50 and no Z axis offset since the Z axis is measurement of the servo motor and not the TCP. Important to note the limitation of joints Alt text

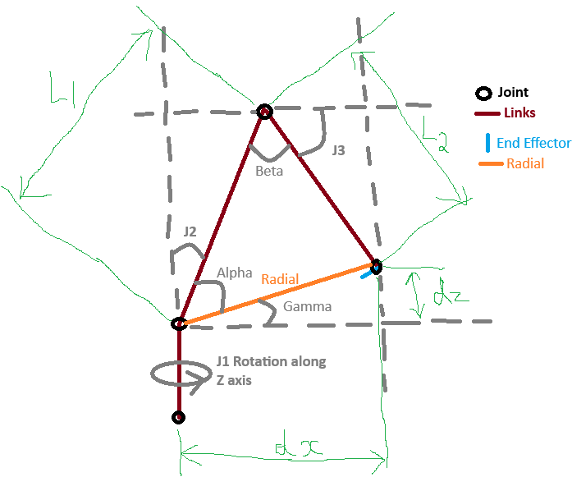

Forward Kinematics (FK)

Alt text

def fk_deg(j1d,j2d,j3d,j4d):
    """
    fk
    x can be given by cosine of radius
    y can be given by sine of radius
    z can be given by z0+
    """
    j1,j2,j3,j4 = map(rad,(j1d,j2d,j3d,j4d))
    print(j1,j2,j3,j4)
    rr = X0 + L1*math.sin(j2) + L2*math.cos(j3)
    z  = Z0 + L1*math.cos(j2) - L2*math.sin(j3)
    x,y = rr*math.cos(j1), rr*math.sin(j1)
    r  = j1 + j4
    return x,y,z,deg(r)

The above will give roughly 1-2mm of error but works under 1mm for most cases. However a point can be made here by using geometric method and relying on it can be hard when number fo joints explode in a system and there you may want to consider usign, FK composes the homogeneous transforms to obtain the tool pose from joint angles q = [q1, q2, q3].

import numpy as np

def dh(a, alpha, d, theta):
    ca, sa = np.cos(alpha), np.sin(alpha)
    ct, st = np.cos(theta), np.sin(theta)
    return np.array([
        [ct, -st*ca,  st*sa, a*ct],
        [st,  ct*ca, -ct*sa, a*st],
        [ 0,     sa,     ca,     d],
        [ 0,      0,      0,     1],
    ])

# Example placeholders (replace with your DH table)
# a = [a1, a2, a3]; alpha = [α1, α2, α3]; d = [d1, d2, d3]
# def fk(q):
#     T01 = dh(a1, α1, d1, q[0])
#     T12 = dh(a2, α2, d2, q[1])
#     T23 = dh(a3, α3, d3, q[2])
#     T0T = T01 @ T12 @ T23
#     return T0T

Inverse Kinematics (IK)

For a planar 2R subsection (shoulder–elbow) plus a wrist alignment, you can derive a closed-form IK to reach (x, y, z) with a target tool pitch. The simplified 3-DOF IK (ignoring wrist roll) is often sufficient for pick-and-place.

Steps:

  • Project target into the arm plane; compute shoulder angle with atan2.
  • Law of cosines for elbow angle from link lengths and projected reach.
  • Wrist angle to satisfy desired pitch or to keep the tool vertical.

def ik_deg(x,y,z,rd, elbow="down"):
    j1 = math.atan2(y,x)
    j4 = rad(rd) - j1
    dr = math.hypot(x,y) - X0
    print(f"dr {dr}")
    dz = z - Z0
    print(f"dz {dz}")
    r2 = dr*dr + dz*dz
    print(f"r2 {r2}")
    r1 = math.sqrt(max(0.0,r2))
    print(f"r1 {r1}")
    # elbow selection via sign of sin(beta)
    cB = (r2 - L1*L1 - L2*L2)/(-2*L1*L2); cB = max(-1.0,min(1.0,cB))
    print(f"cB {cB}")
    sB = math.sqrt(max(0.0,1-cB*cB))
    print(f"sB {sB}")
    if elbow=="up":  sB = -sB
    beta  = math.atan2(sB, cB)
    print(f"beta {beta}")
    alpha = math.asin(L2*sB / (r1 if r1>1e-9 else 1.0))
    print(f"alpha {alpha}")
    gamma = math.atan2(dz, dr if abs(dr)>1e-9 else 1e-9)
    print(f"gamma {gamma}")
    j2 = math.pi/2 - alpha - gamma
    print(f"j2 {j2}")
    j3 = math.pi   - beta  - alpha - gamma
    print(f"j3 {j3}")
    return [deg(j1),deg(j2),deg(j3),deg(j4)]

Waypoints and Pick-and-Place Sequence

  1. Approach above pick: (x, y, z + z_clear)
  2. Descend to pick: (x, y, z) and close gripper
  3. Lift: back to (x, y, z + z_clear)
  4. Approach above place: (x', y', z' + z_clear)
  5. Descend to place: (x', y', z') and open gripper
  6. Retreat

Between waypoints, generate a time-parameterized joint trajectory with velocity/acceleration limits. Verify each pose via FK before commanding the hardware.

Implementation Notes

  • Use Dobot SDK for command streaming and IO control (gripper/suction).
  • Calibrate home pose and define a safe workspace box to avoid singularities/self-collisions.
  • Add soft limits on q and dq.
  • For higher accuracy, refine link lengths via least-squares from measured poses.

Next Steps

  • Add camera-based detection for dynamic pick points.
  • Blend linear segments (S-curve) to reduce jerk.
  • Publish a small Python package with FK/IK utilities for Dobot Magician Lite.
